Control Solutions



We also offer bespoke control solutions, in that if a client has a particular application, we can offer solutions for his needs.

We provide control panels to one particular customer, that interface to the store AC Cassette units allowing him to start and stop the units as required, plus automatic time control, but the setpoint for the cassette unit operation is automatically compensated on internal and external air temperatures. The keypad is also locked out, so no one person can change plan settings, but all fault codes are reported to the keypad.

We supply bespoke lighting control panels for use in retail premises controlling all the shop lighting from cleaner’s lights to trading lights.

This is a typical application and all of the client’s stores will now have these panels as standard, this is a solution to a specific Client Requirement.

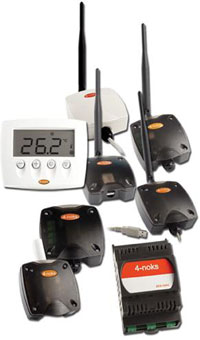

Key Features
  • ZigBee technology

  • Standard ModBus interfaces into ZigBee network

  • No ZigBee and RF skills required

  • Quick and low-cost installation

  • Complete family of sensors and actuators

  • Portable handheld diagnostic tool available

  • Client module for OEM devices

  • Third party ModBus devices can be connected
Click here to view more details.




Trend Controls

The IQ3 controllers are Building Management System controllers that use Ethernet and TCP/IP networking technologies. Each controller incorporates a web server which can deliver user specific web pages to a PC or mobile device running internet browser software. If a system is set up with the correct connections, a user with the appropriate security codes can monitor or adjust the controller from any Internet access point in the world. It is also compatible with the traditional IQ system protocol.

Ethernet 10 Mbps main network with TCP/IP protocol:

  • Embedded web server
  • Security protected monitor/control via web browser
  • Compatible with existing IQ system protocol
  • 100 to 240 Vac, or 24 Vac and 24 to 60 Vdc supply versions
  • Small footprint with DIN rail mounting


The IQView4 is a touch screen display which provides an interface to an IQ controller by way of its local supervisor port. It allows access to modules, graphs, alarms, and timezones.

It has a 4.3 (109.2 mm) LCD touch screen colour display, and is housed with the electronics in a single unit suitable for rear panel mount applications. As well as a Home screen, the unit can be programmed with a number of favourite screens.

RS232 connection options:

  • Rear panel mount with front cover
  • 24 Vac/dc input power supply
  • Colour touch screen display
  • Connects directly to IQ controller local supervisor port
  • Compatible with IQ1s (v5 and above), IQ2s, IQ3s
  • Key click sounder
  • View of inputs, outputs, directories, logs
  • Adjustment of knobs, switches, time zones, time
